Engine Type
CP300 2 Stroke
Transmission
36KW (CP300)
Front shock absorber
Adjustable Front Shock Absorber
Tires
21/18 Tires
Carburetor
NIBBI Carburetor

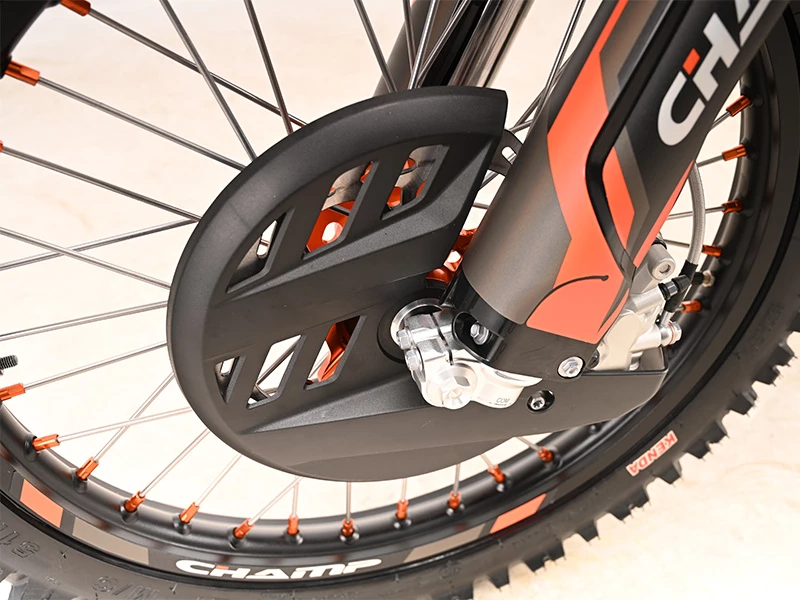

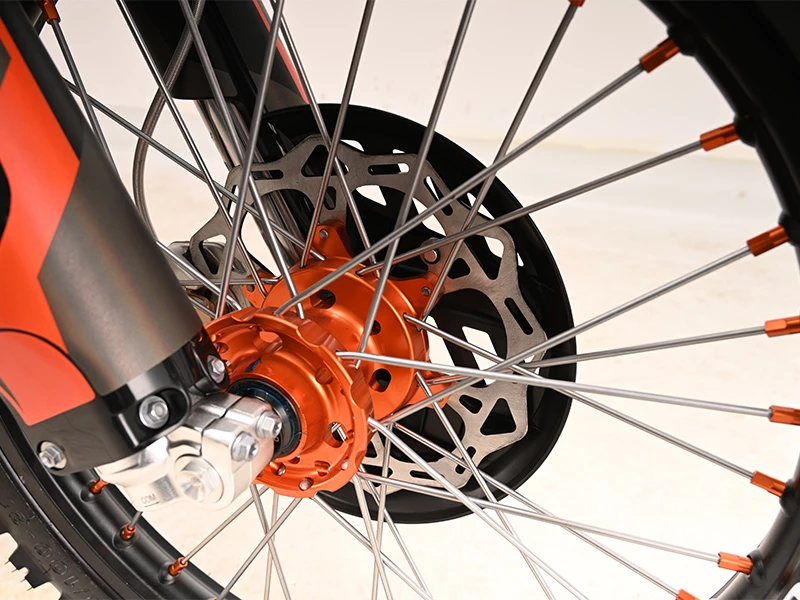

Brakes

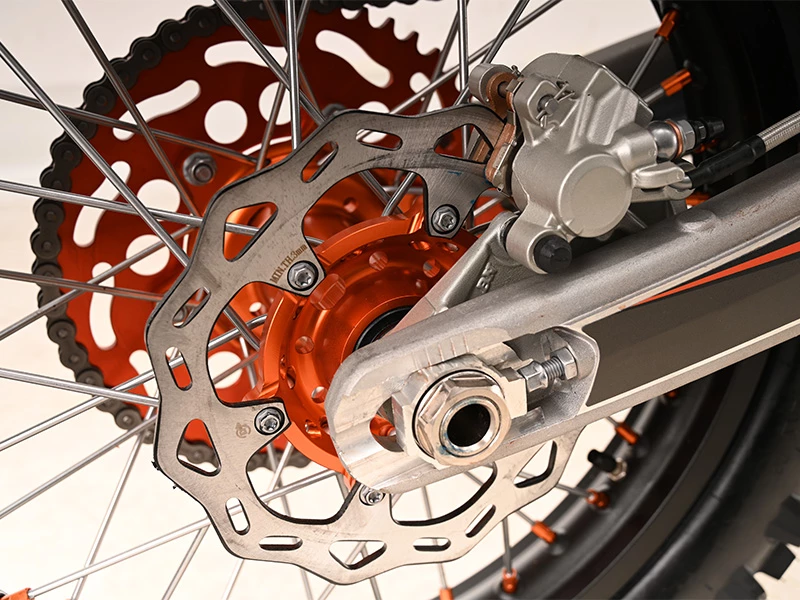

DISC Brake
Looking For Global Dealers
Chongqing Charming Motorcycle Manufacture Co.,Ltd., was founded in 1998, through years of development, our annual production capacity has exceeded 200,000 units of motorcycles, and we have grown into a company that integrates R&D, manufacturing, international marketing, import and export trade agency services. Sincerely looking for global distributors!

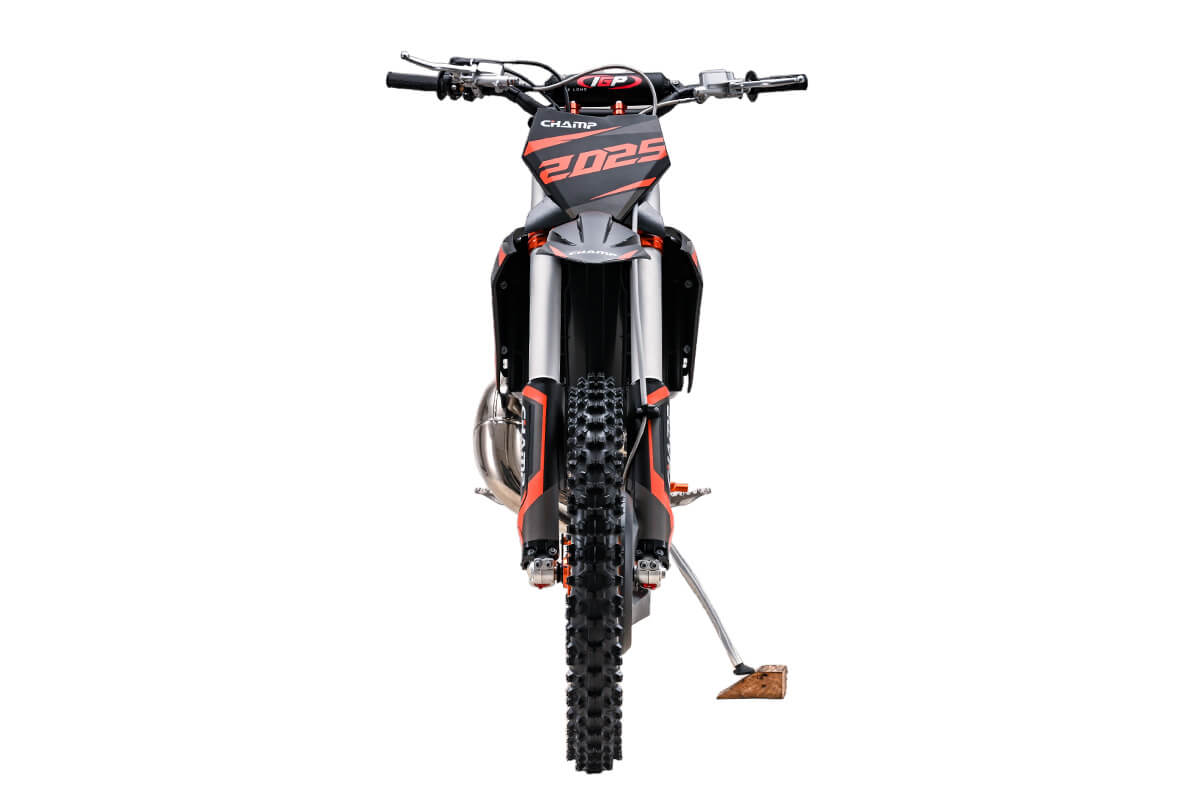

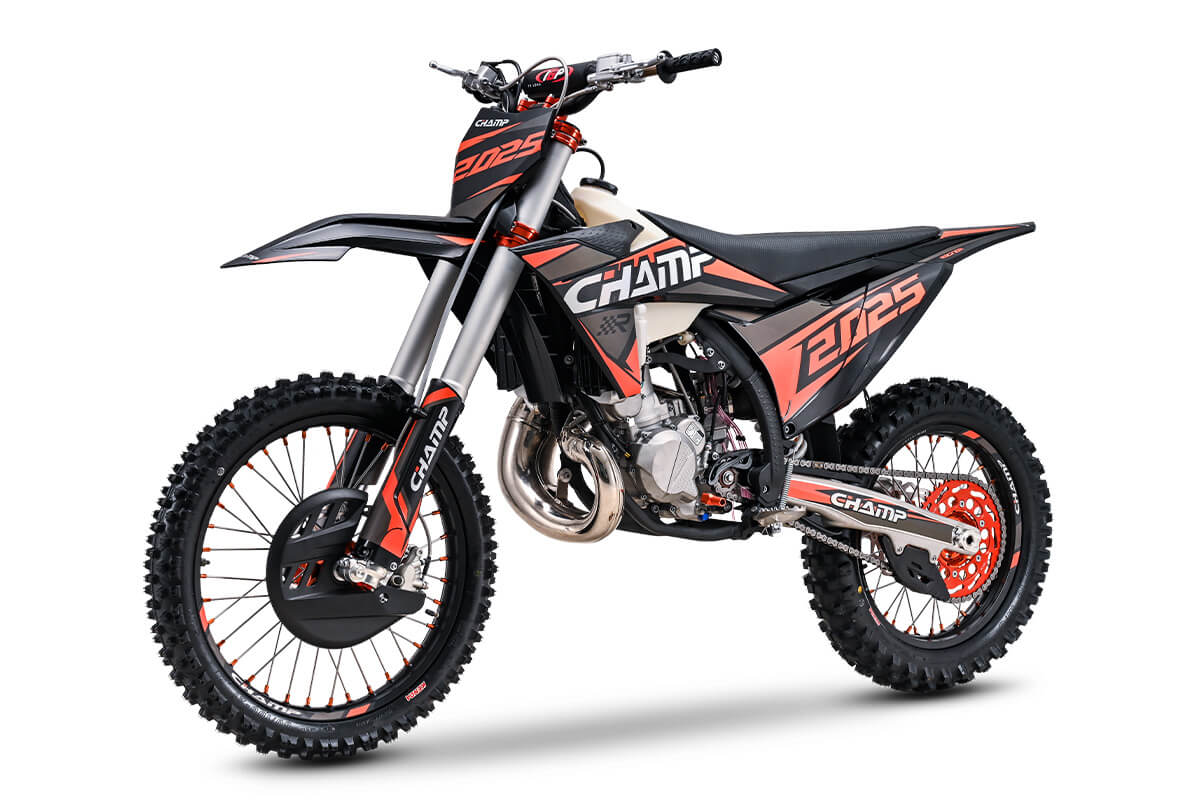

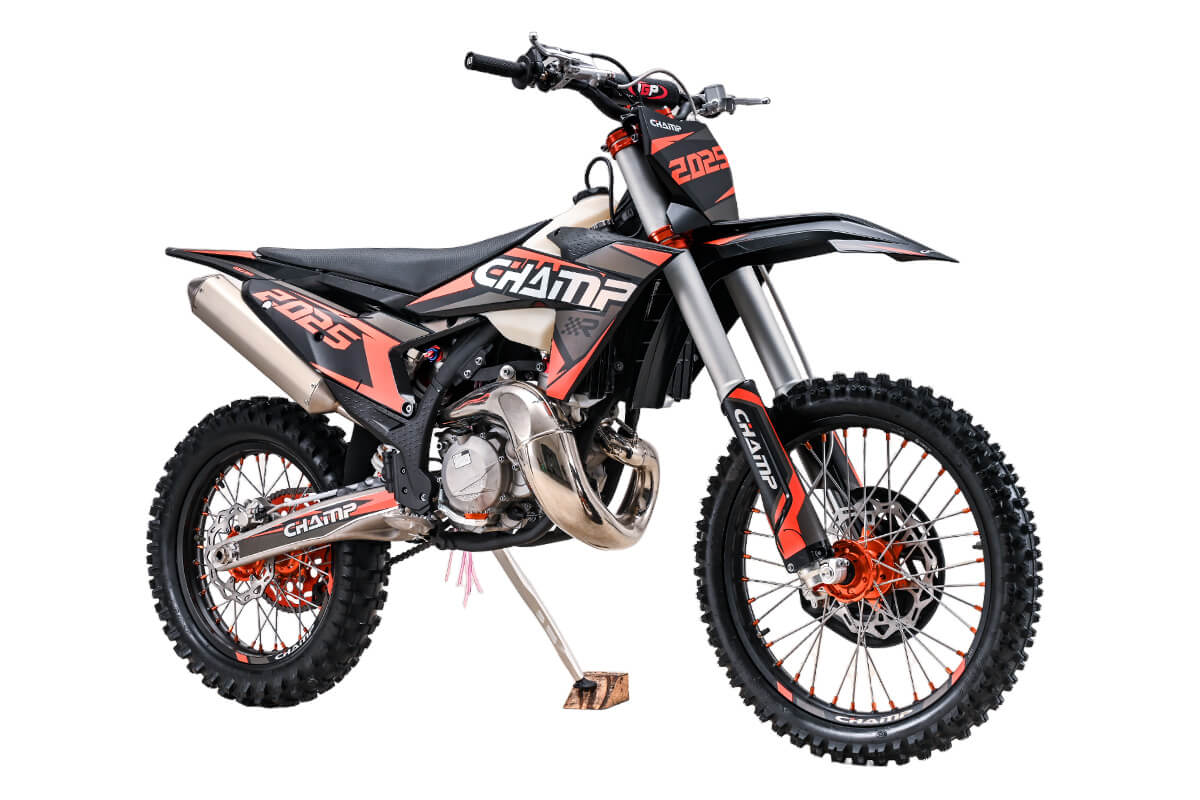

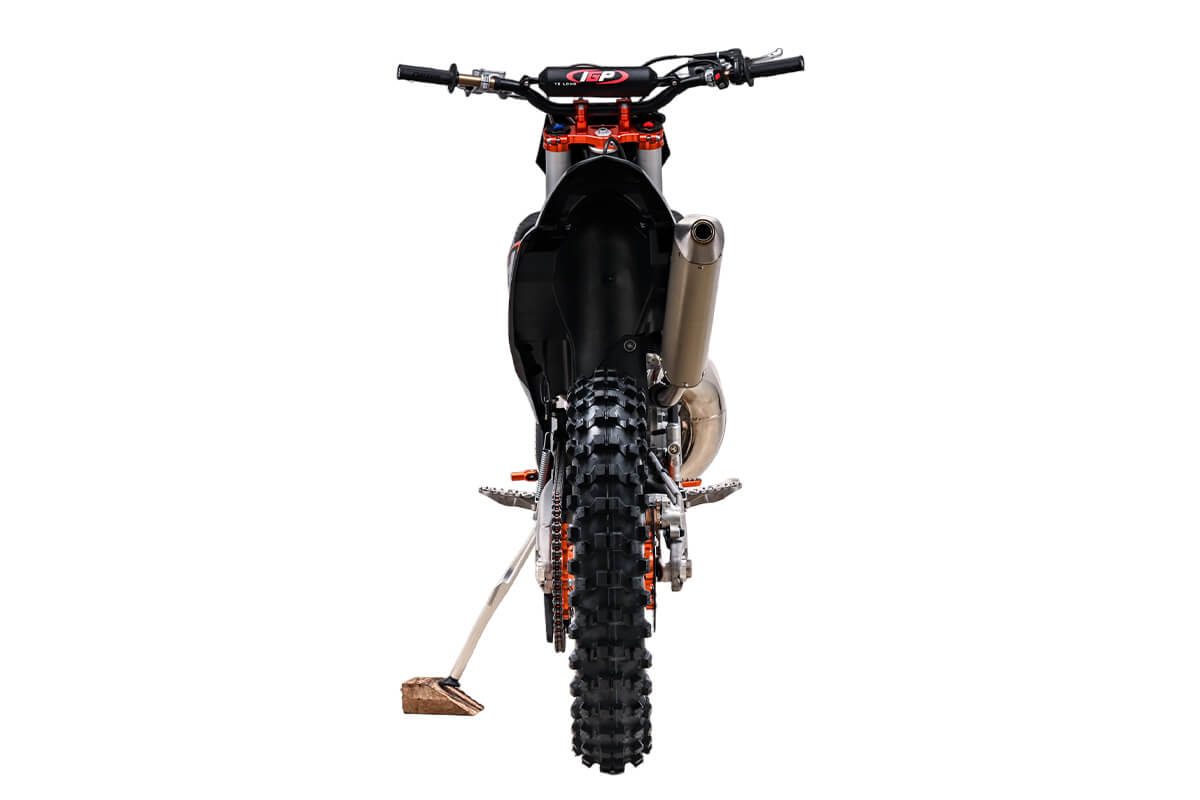

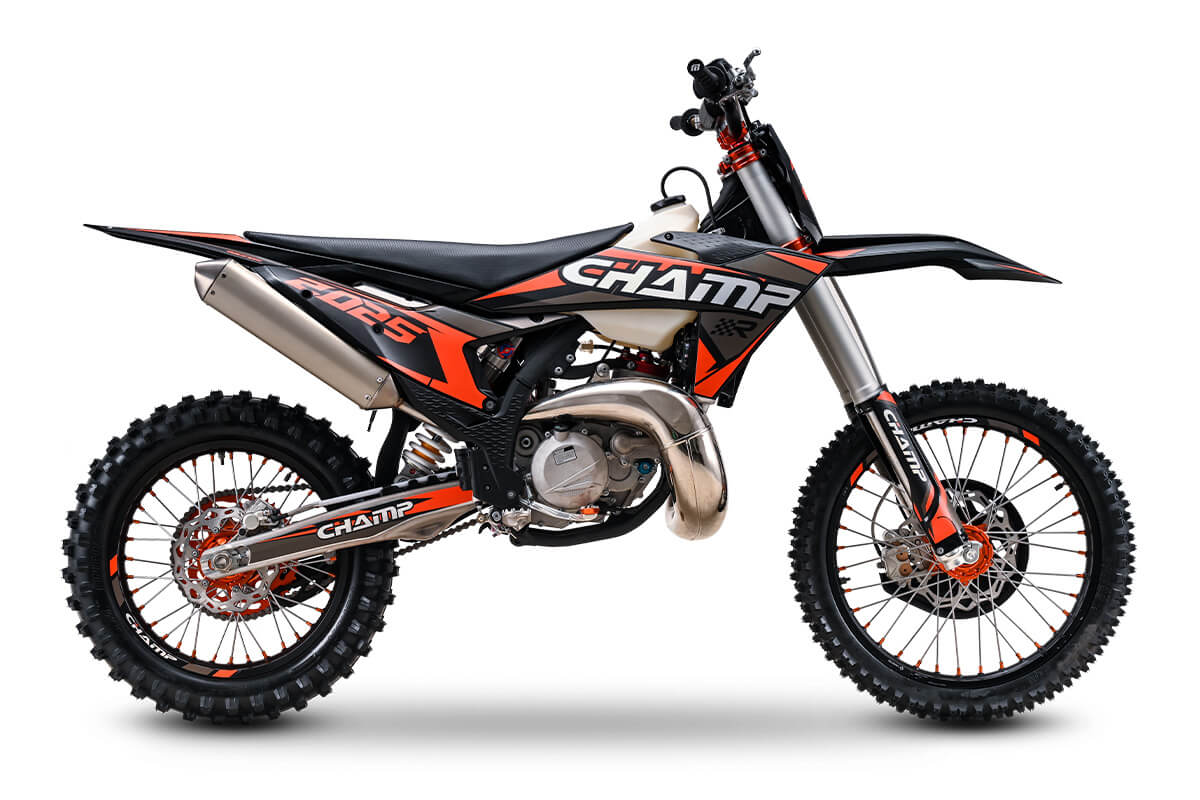

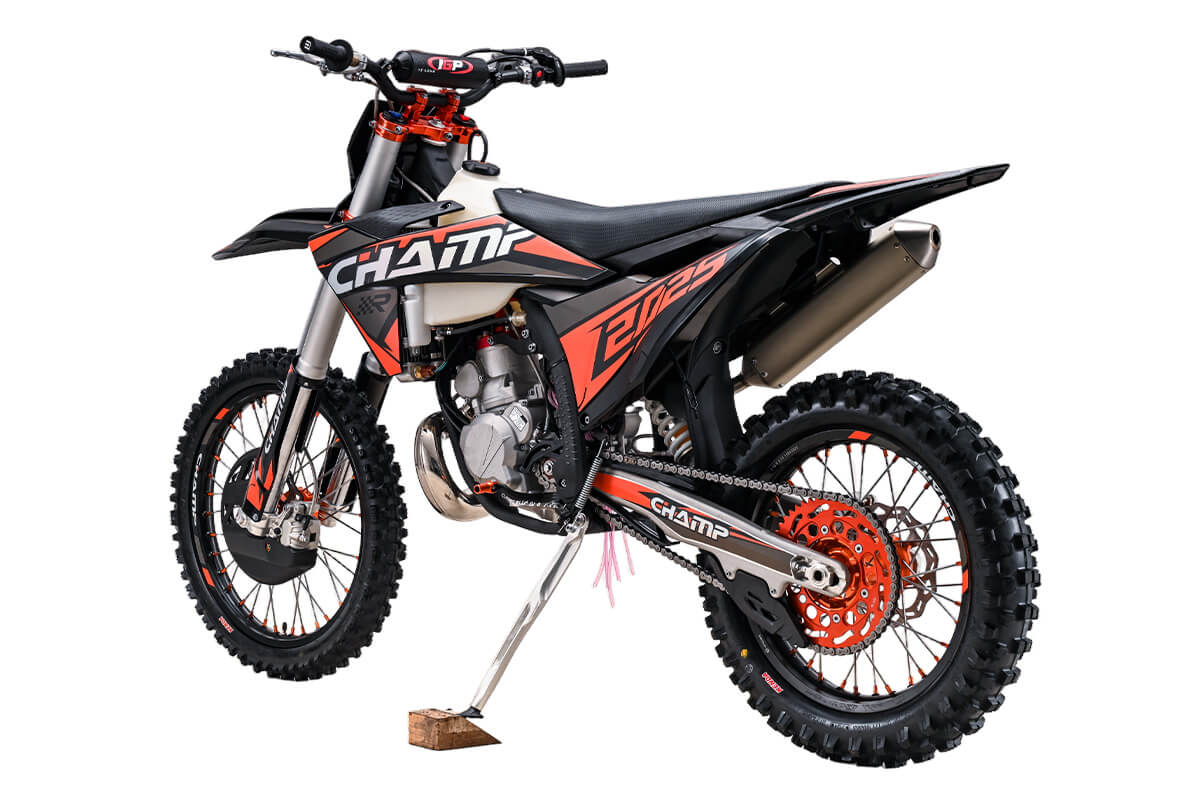

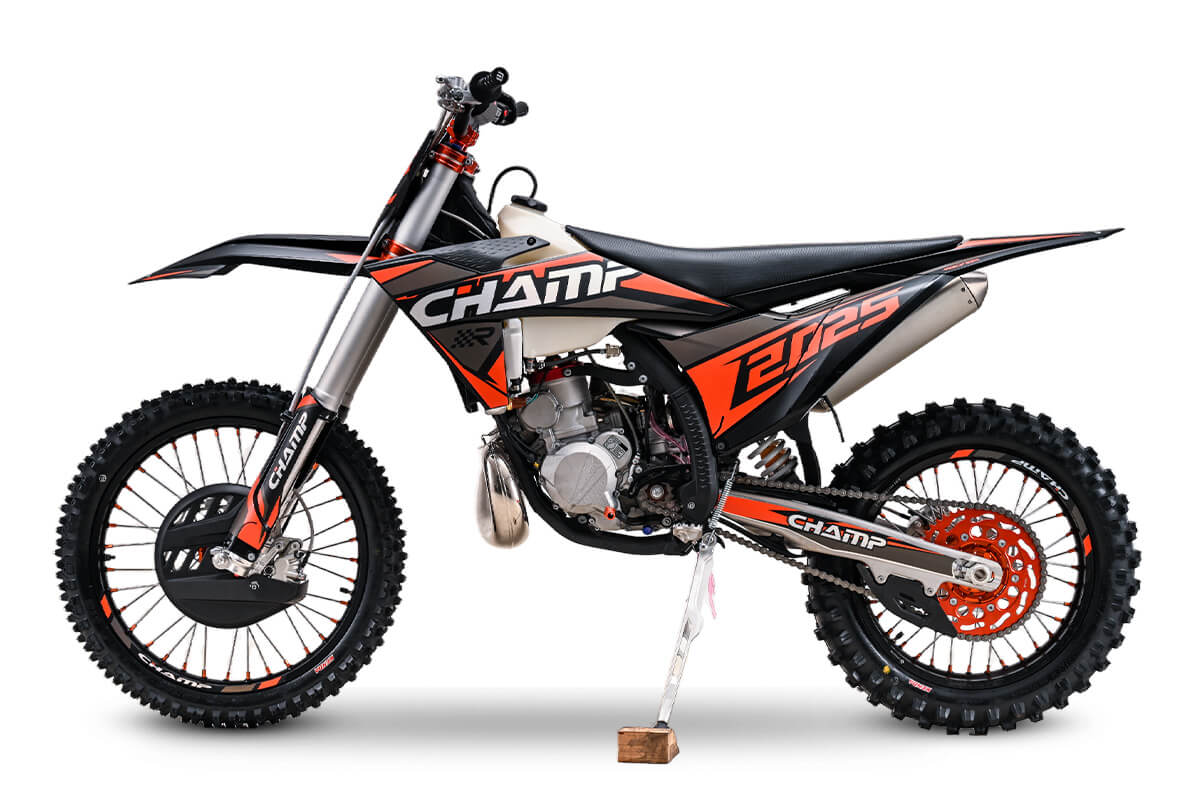

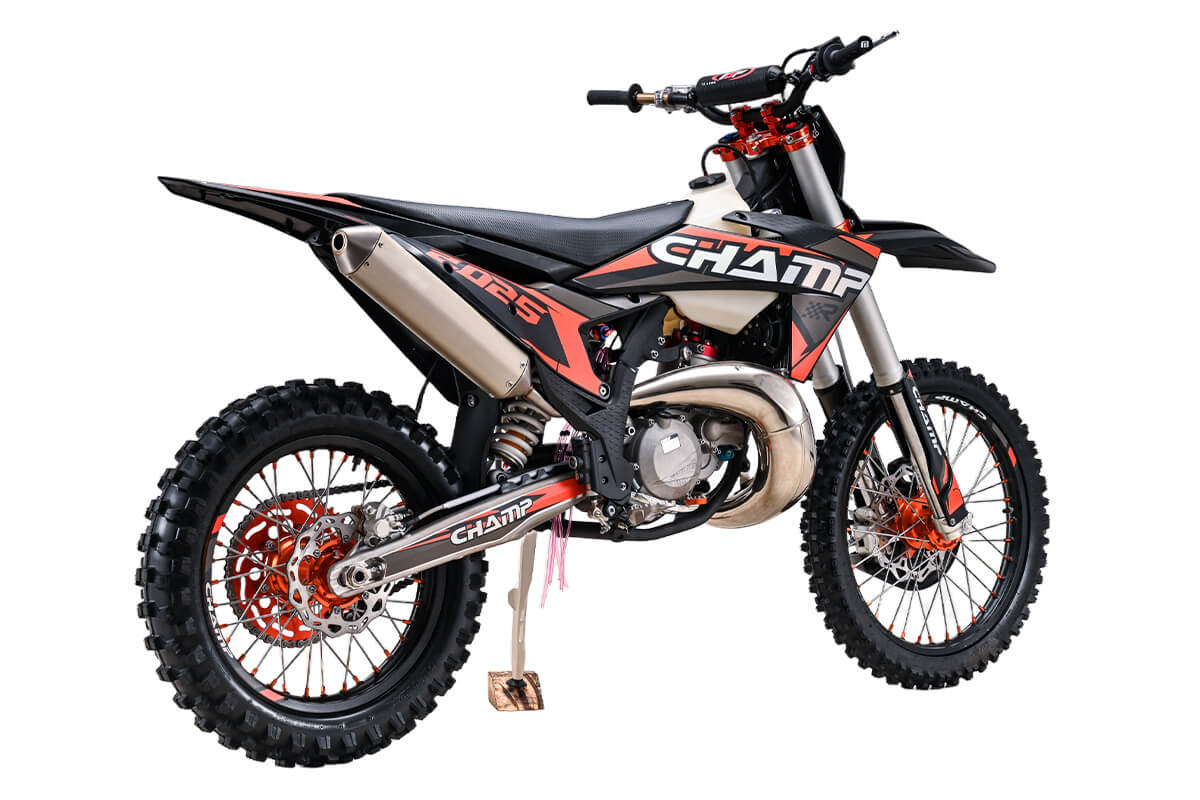

K24 Offroad
3 engine models (2 stroke&4 stroke) to choose, the power is large enough, excellent shock absorption, very suitable for off-road and off-road forest road!
Custom Your Motorcycle
OEM&ODM Support
Charming Motorcycle Company has differend kinds of motorcycle, incluiding gasoline motorcycle such as street motorcycle, offroad, cub and electric motorcycle, we have strong development ability, we are glad to help you to creat your own products if you have any OEM&ODM needs!
Best After-sell Service
Charming Motorcycle Company is famous as its good after-sell service, we have many customers cooperated for more than 10 years, we always provides the best after-sell service to our customers, so please don’t worry about cooperating with us, we are the best choice!

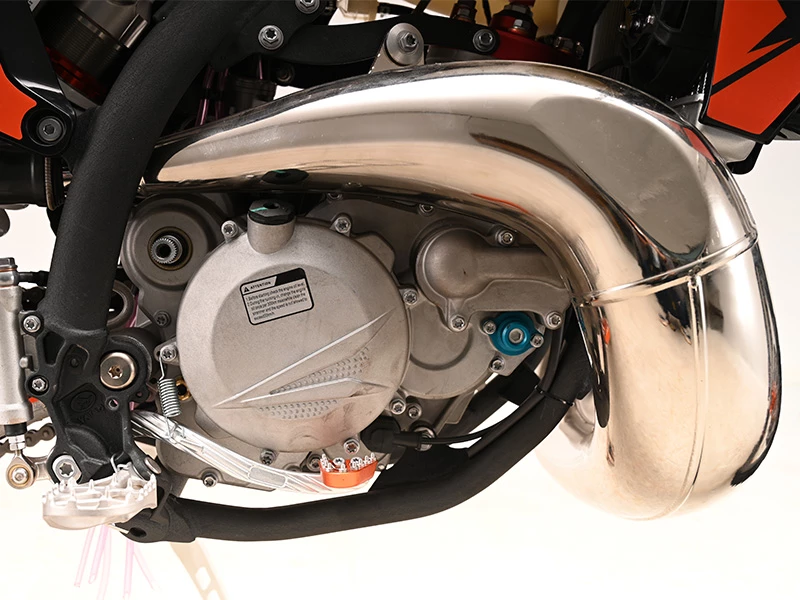

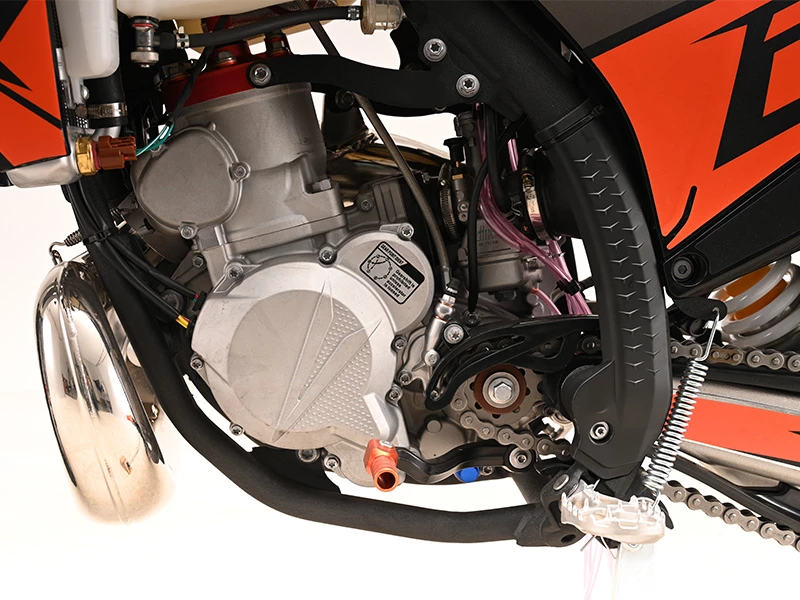

Product Details
- 293ml real displacement
- Single cylinder
- 2-stroke

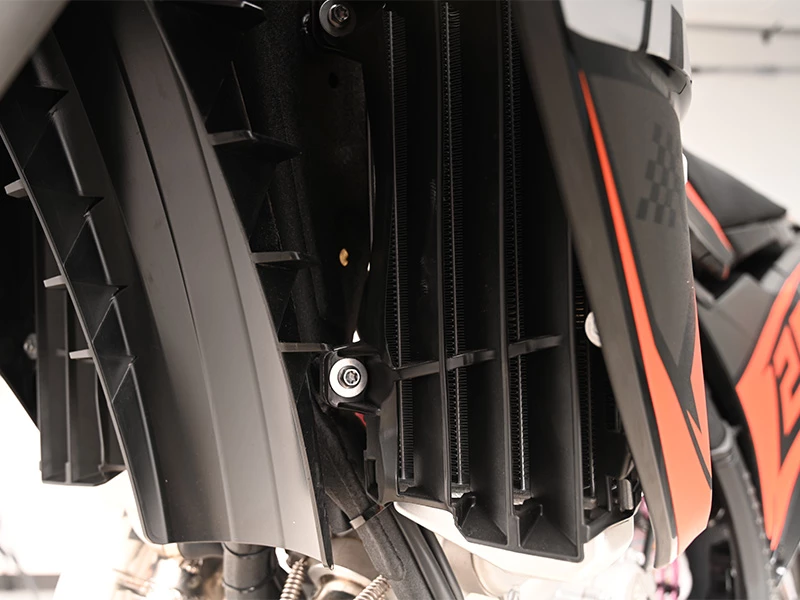

- Water-cooling
- 36Kw/9800(r/min) max. Power
- 43N.m/7500(r/min)
The excellent shock absorption effect provides a comfortable riding experience.

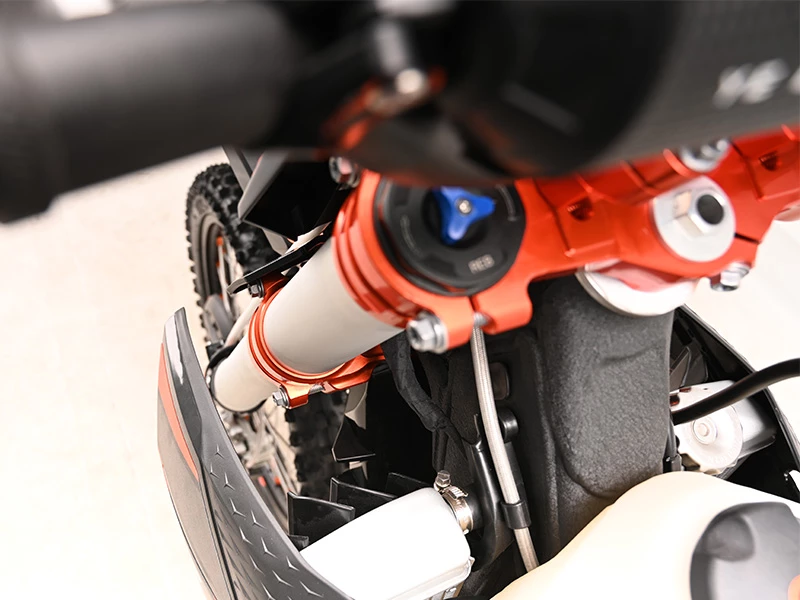

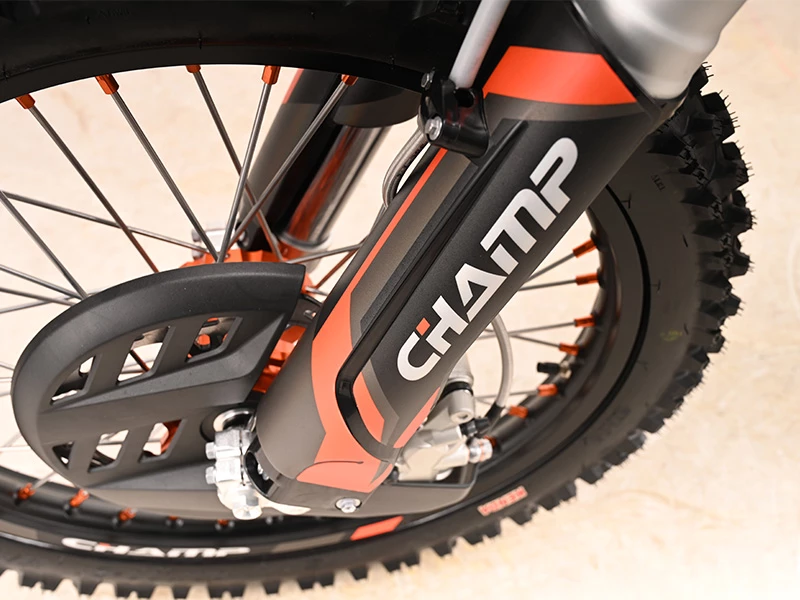

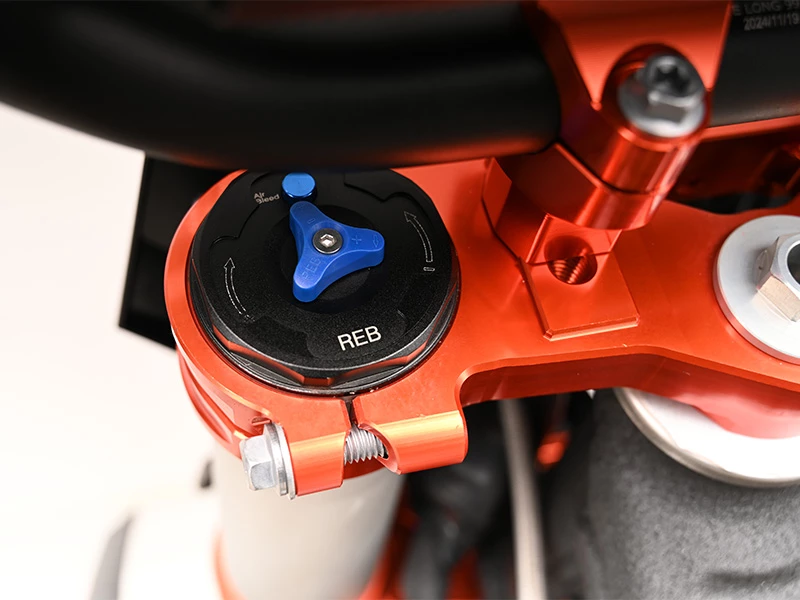

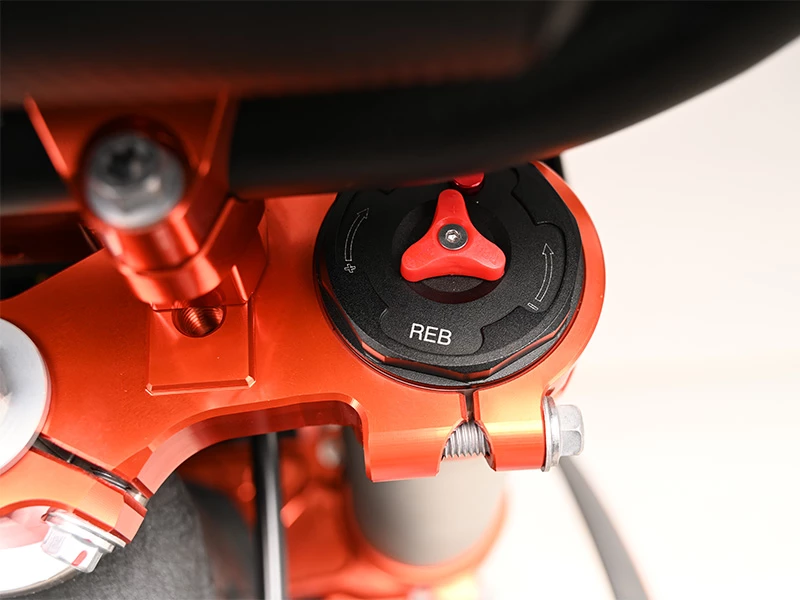

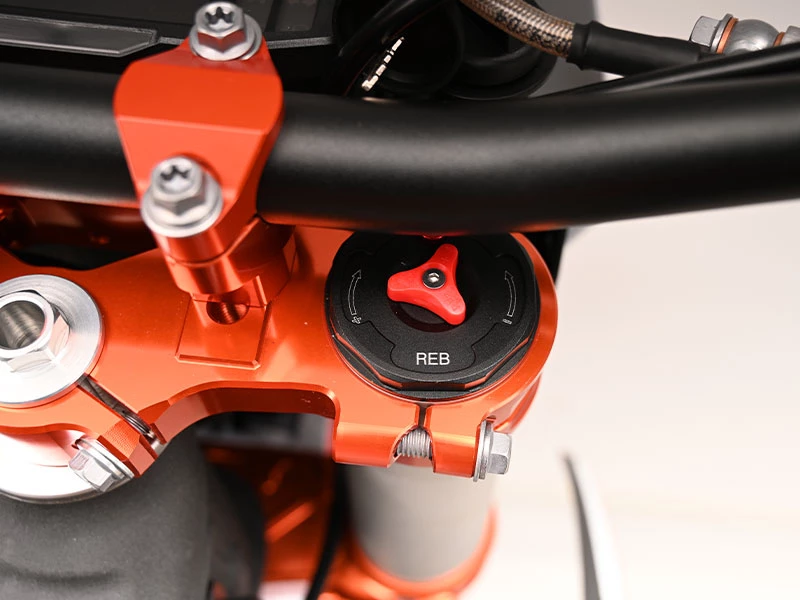

- Front adjustable inverted shock absorber, 300mm stroke.
- Rear adjustable external airbag shock absorber.

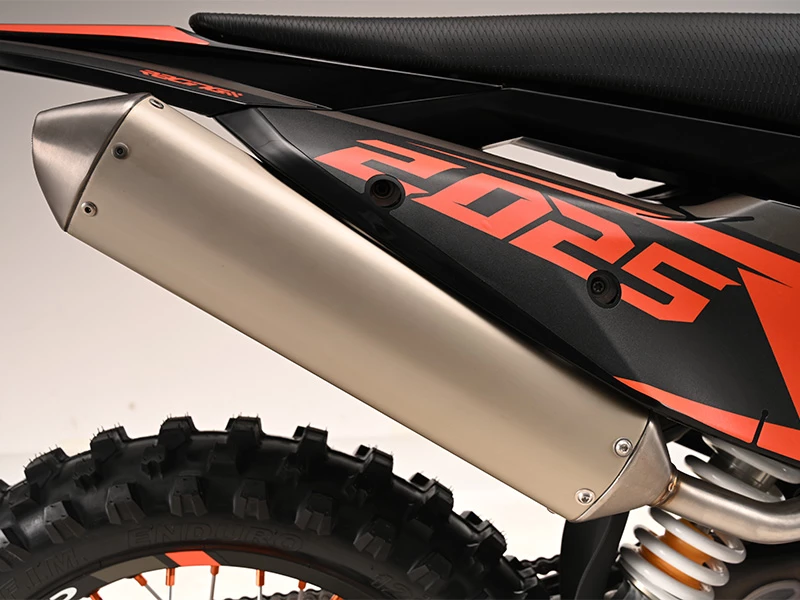

Equipped with a stainless steel muffler, it is beautiful and durable.

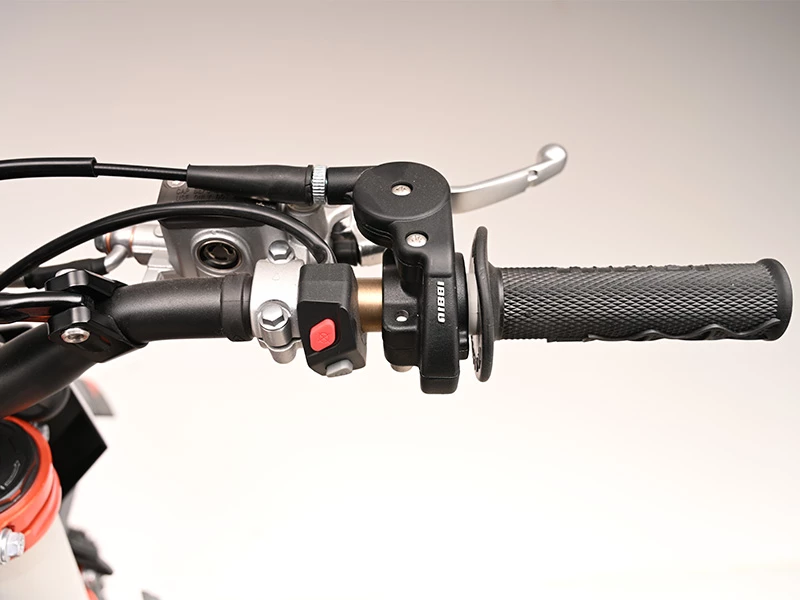

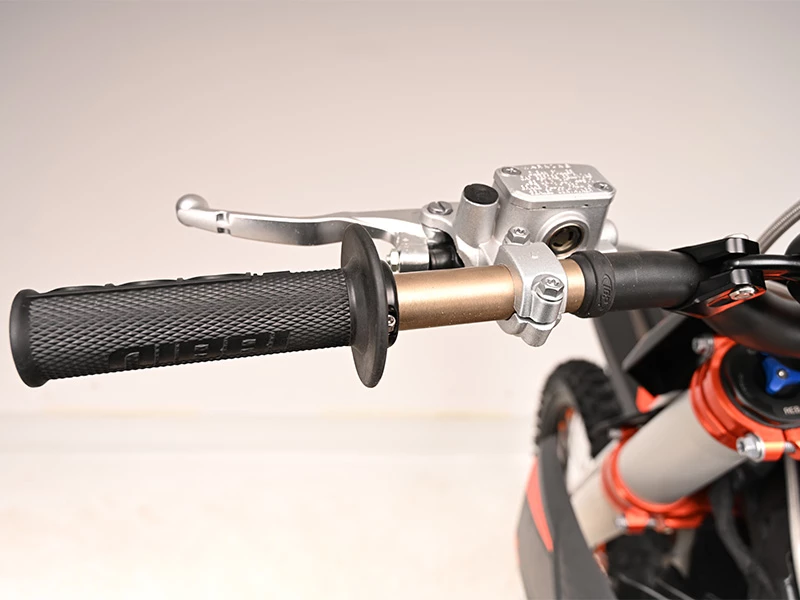

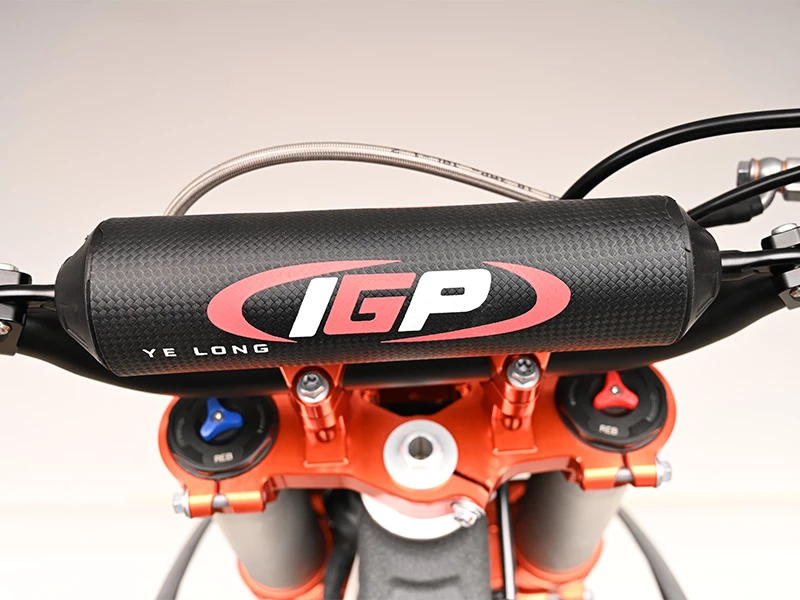

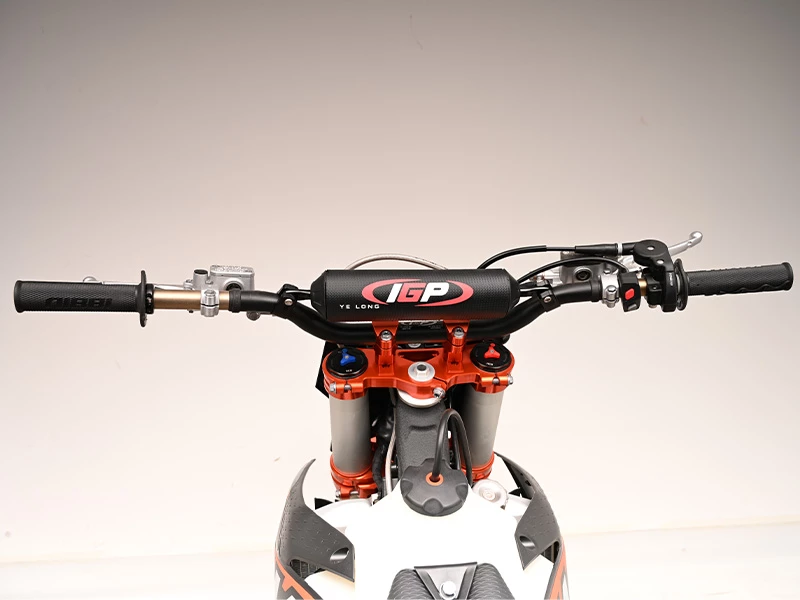

Aluminum alloy handlebar, aluminum alloy rear fork, aluminum alloy rear brake lever, aluminum alloy side stand, etc., many parts of these off-road models use aluminum alloy material.
Specification
| Engine（NK300） | Single cylinder, 2-stroke, Water-cooling, Inclined |
| Bore×stroke | 72×72mm |
| Displacement | 293ml |
| Compression ratio | 13.2：1 |
| Maximum net power | 36KW |
| Maximum torque | 43N.m |
| Engine（NC300-S） | Single cylinder, four stroke, water cooling, oblique type, overhead cam |
| Bore×stroke | 82×53.6mm |
| Displacement | 283ml |
| Compression ratio | 11.6：1 |
| Maximum net power | 25KW |
| Maximum torque | 27N.m |
| Engine（YBS300） | Single cylinder, four stroke, water cooling, DOHC， Four valves |
| Bore×stroke | 76×65mm |
| Displacement | 294.9ml |
| Compression ratio | 11.0：1 |
| Maximum net power | 21.5KW |
| Maximum torque | 27N.m |
| Tire size (front/rear) | 80/100-21，120/100-18 |
| Minimum ground clearance（mm） | 340 |
| Wheelbase（mm） | 1490 |
| Dimensions (L×W×H)（mm） | 2180*830*1290 |
| fuel tank capacity（L） | 7L |
| Starting method | Electric/Kick start |
| Shift method | International 6 gear |
| Carburetor | NIBBI |
| Front shock absorber | adjustable inverted front shock absorber |
| Rear shock absorber | Adjustable inverted front shock absorber |
