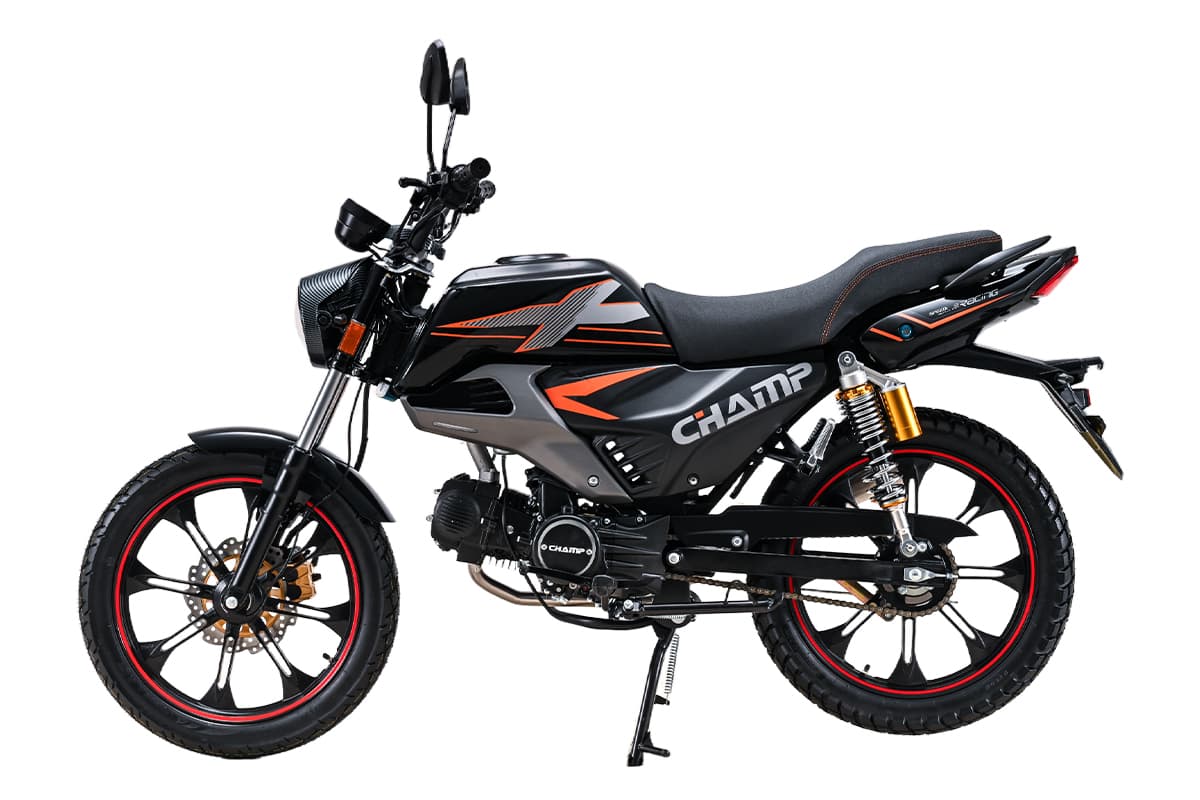

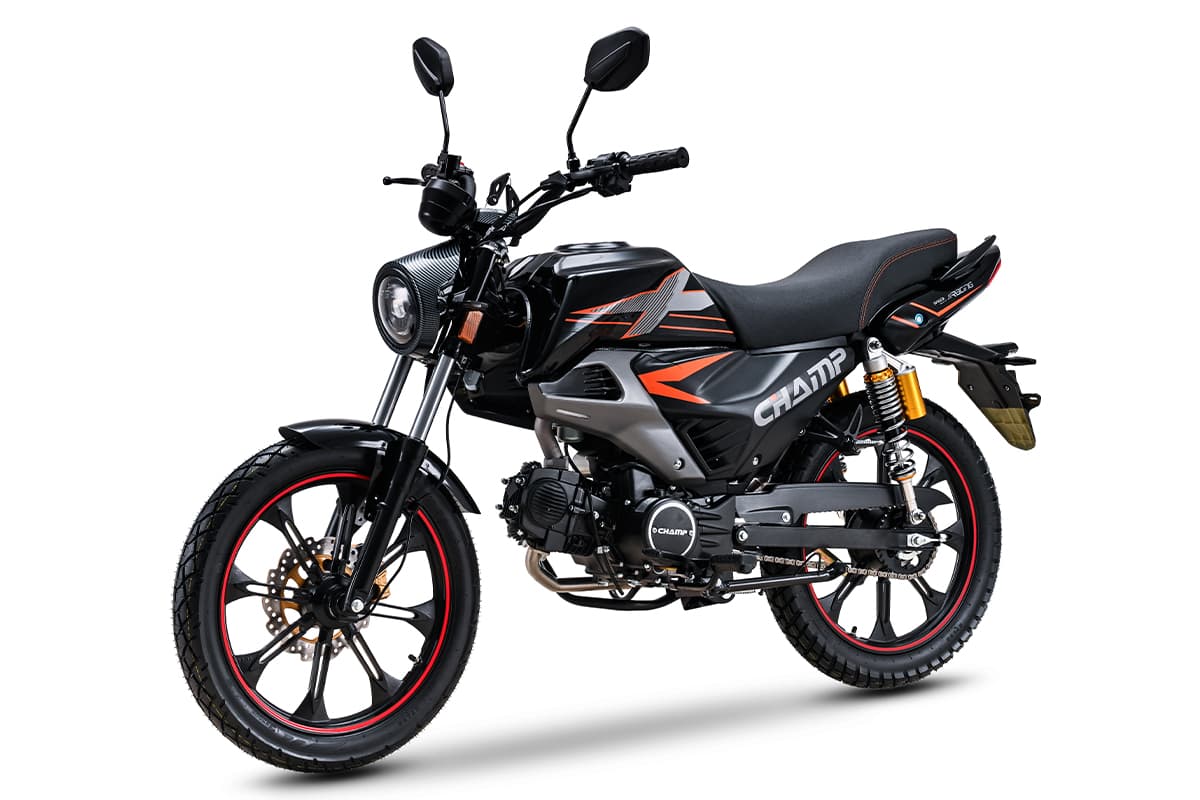

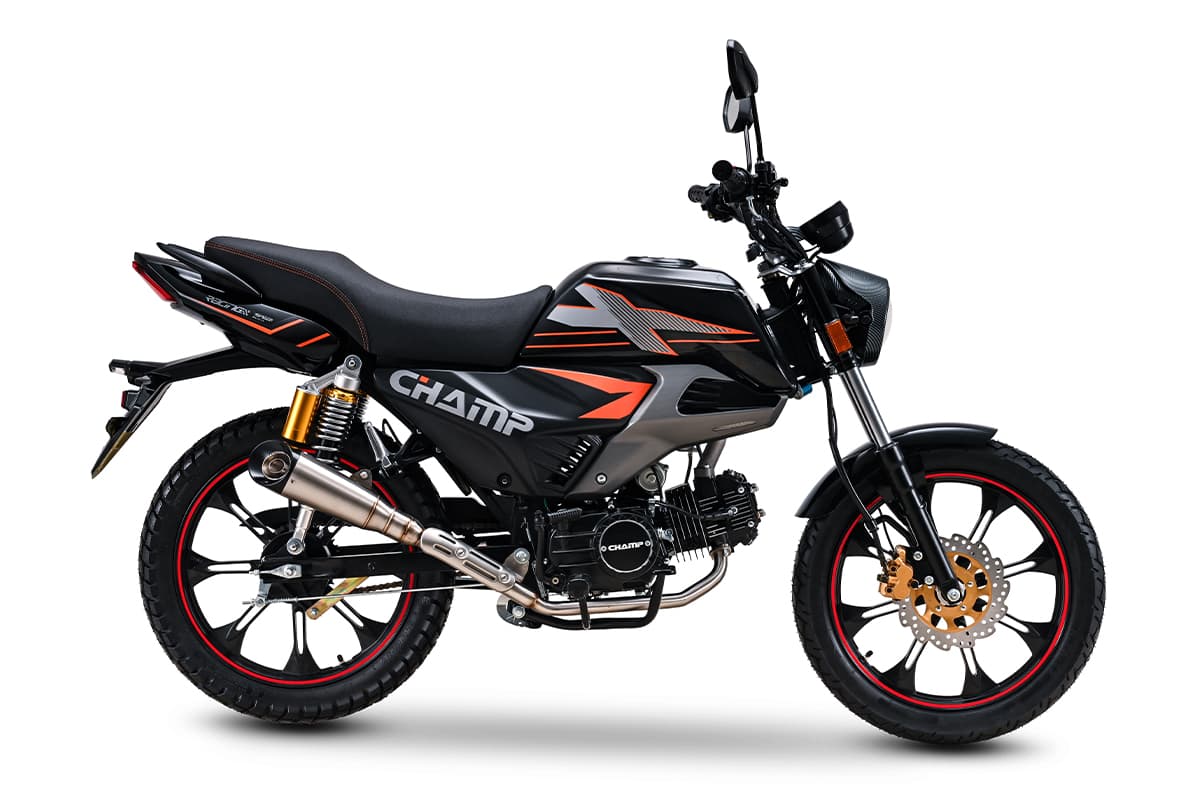

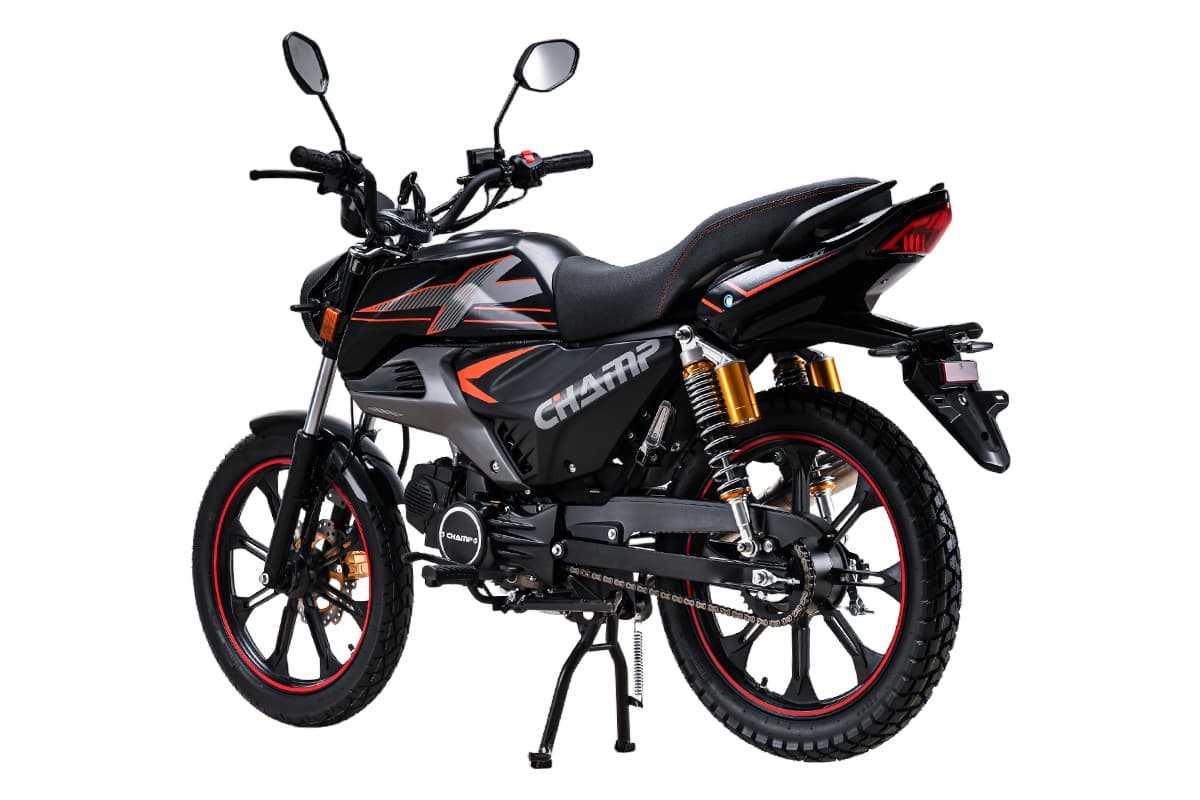

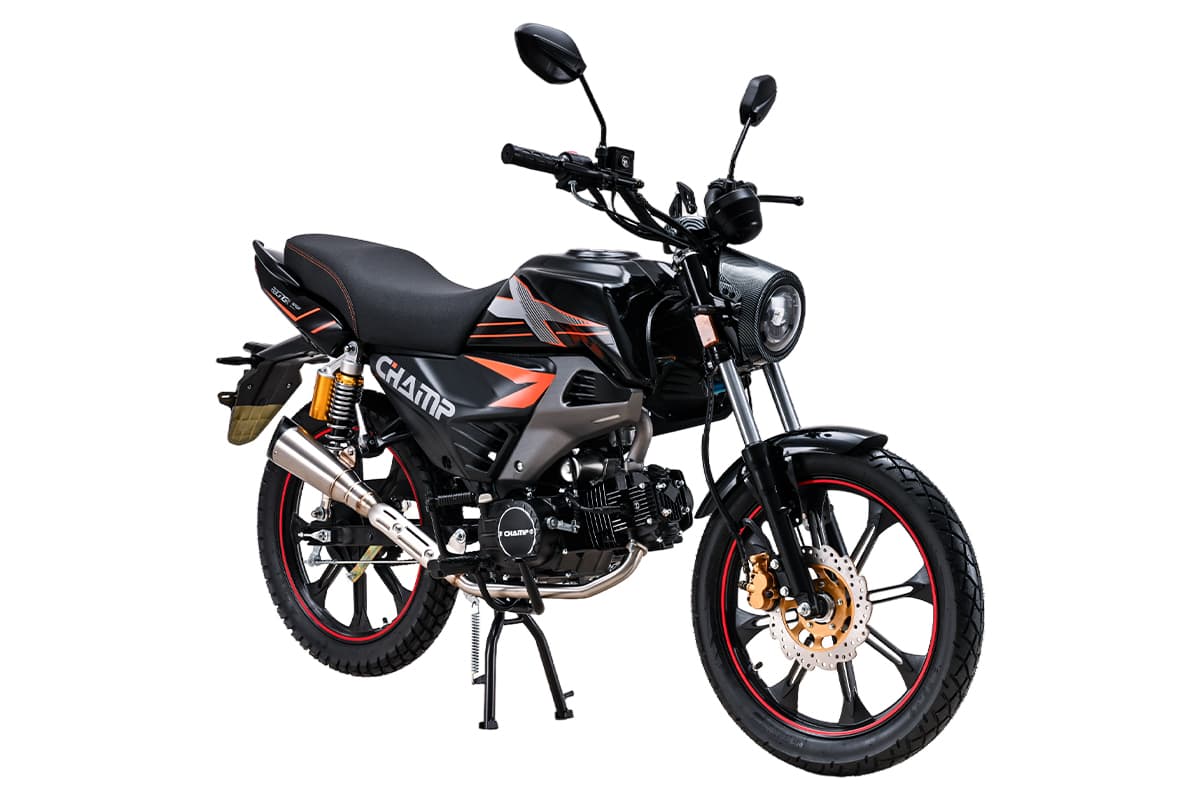

CM125-13D
130CC/140CC
CM125-13D
| SPECIFICATION | |
| Engine Type | 130cc, single cylinder, 4 stroke, air-cooling |
| Bore×Stroke（mm） | 72×61.4 |
| Real Displacement（ml） | 127 |
| Compression Ratio | 8.7：1 |
| Max net power and corresponding speed（kw/rpm) | 6.4/7500（1±1.5%） |
| Max torque and corresponding speed（n·m/rpm) | 9.5/5000（1±1.5%） |
| Min no-load stable speed (idle speed)（r/min） | 1500±150 |
| Min fuel consumption（g/（kw·h）） | ≤354 |
| Shift method | 4 gears |

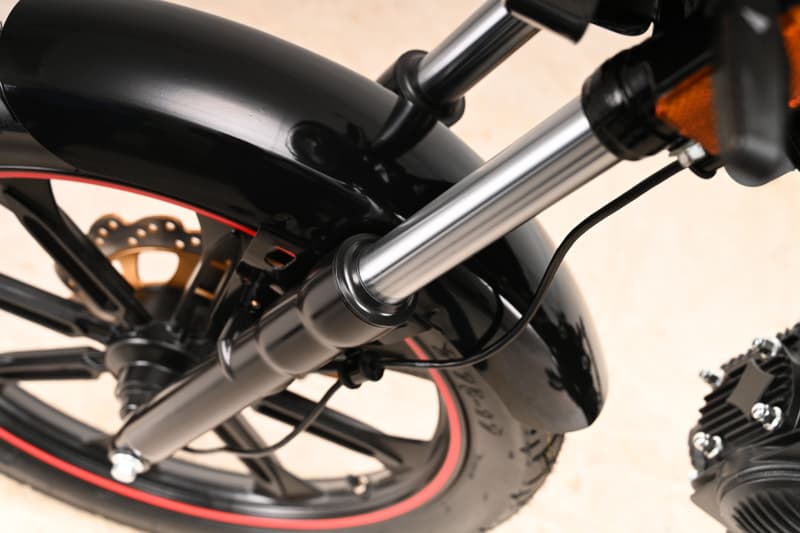

| Shock Absorber | Front hydraulic spring type, non-adjustableRear full spring chrome-plated, external air bag |
| Fuel tank capacity(L) | 14.8L |
| Carburetor | PZ25 |
| Fork | Steel |
| Muffler | Stainless steel |
| Speedmeter | Digital |
| Lights | LED |
| Size(mm) | 1900*770*1050 |
| Wheelbase（mm） | 1210 |
| Minimum ground clearance（mm） | 140 |
| Seat height（mm） | 790 |
| Vehicle curb weight（kg） | 86 |
| Brake type (front/rear) | Disc/Drum |
| Tire size (front/rear) | 2.75-17/3.0-17 |
| Maximum speed(km/h) | ≥90 |
| Starting performance (s) | ≤15 |

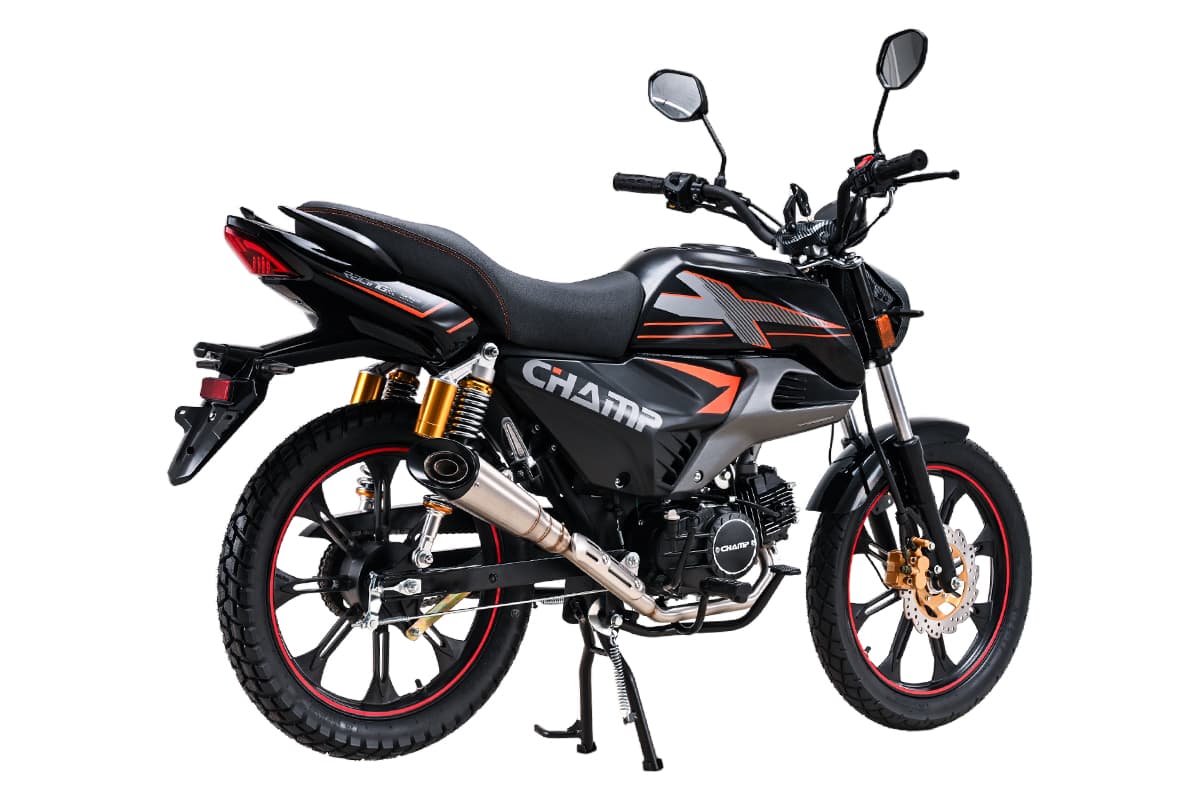

- New fashion design: A brand-new appearance design with a modern sporty style.

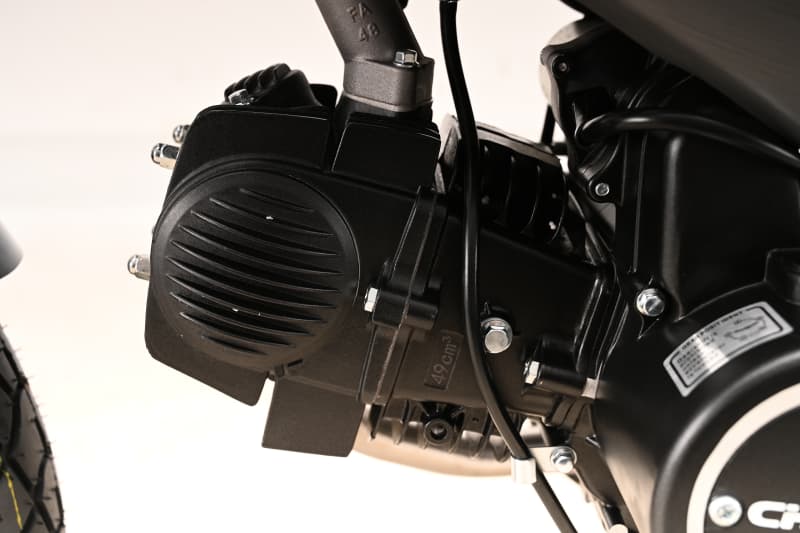

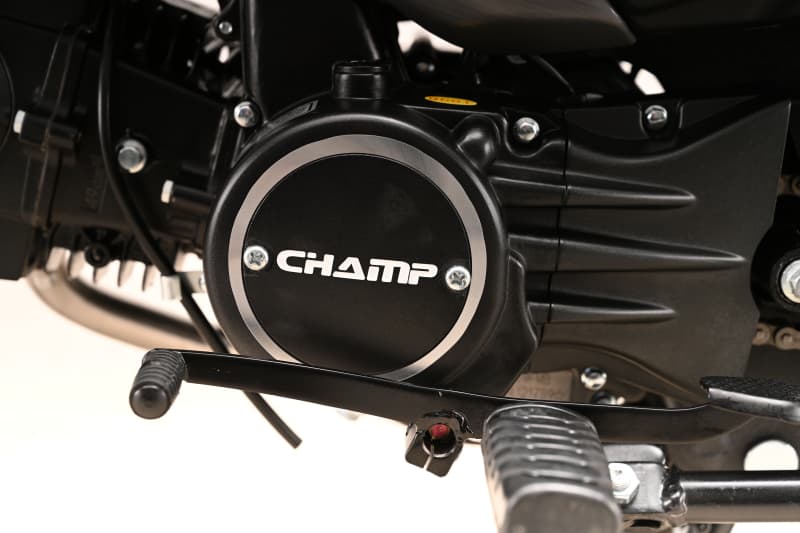

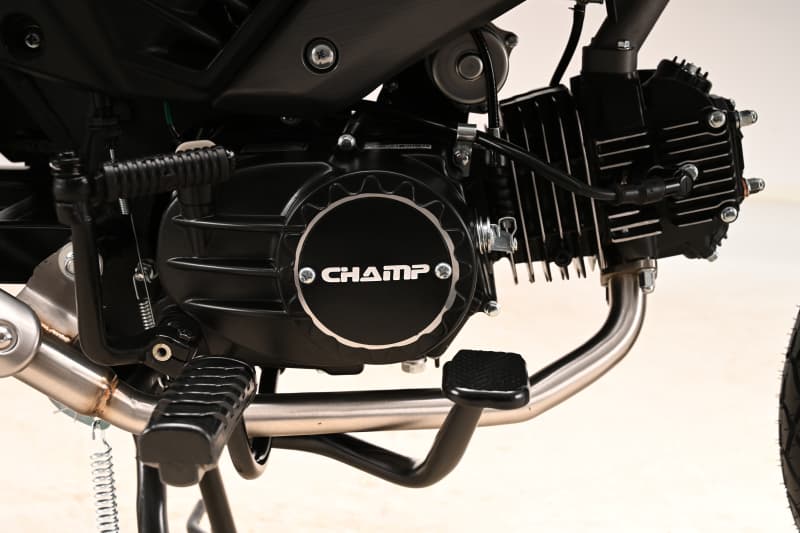

- Reliable power and performance: Equipped with a 140CC engine, it offers strong and reliable power, smooth gear shifting, stable performance, and easy maintenance.

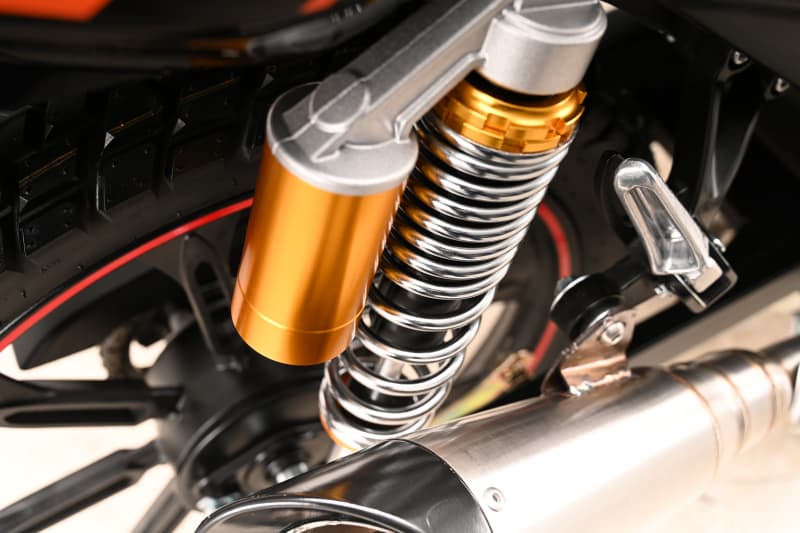

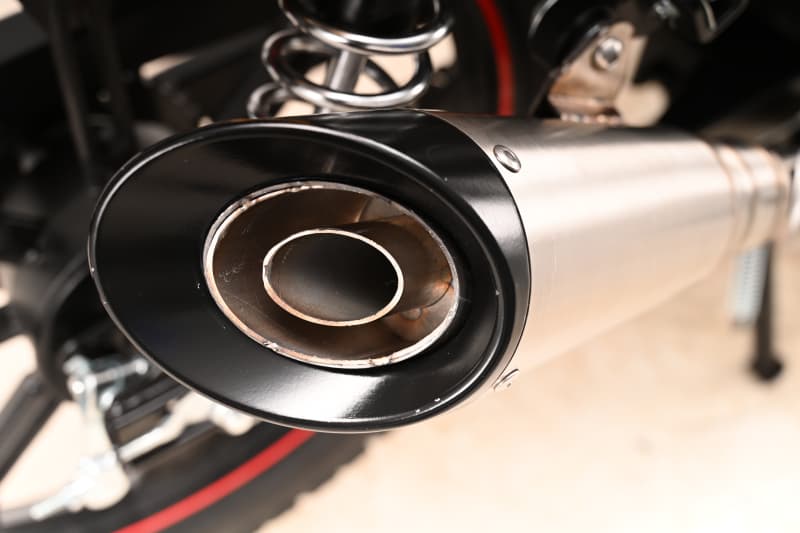

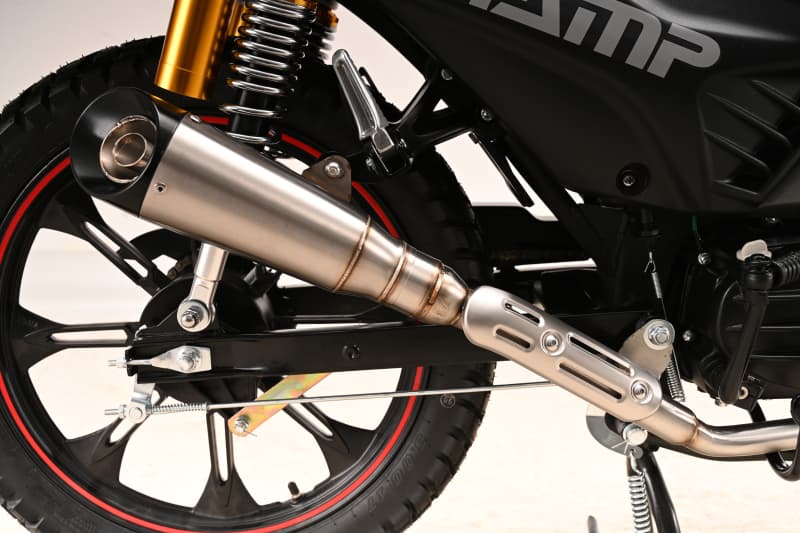

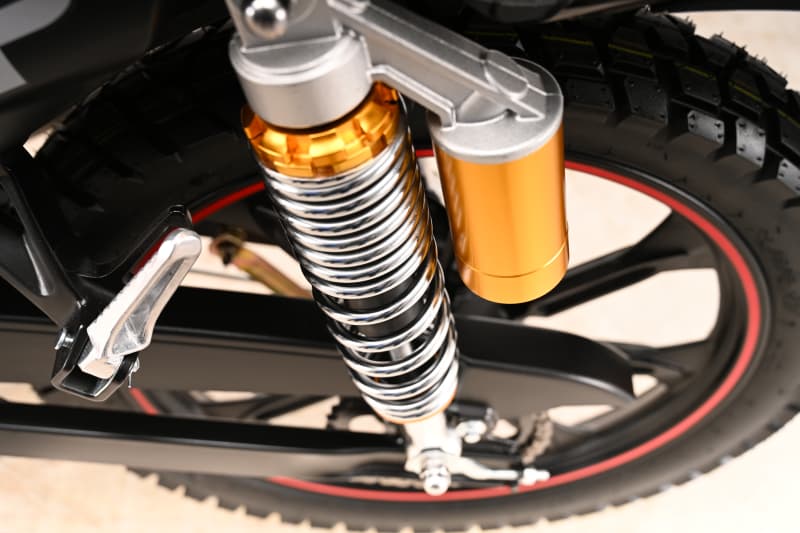

- Enhance comfort: Equipped with an external airbag rear shock absorber, the ride is smoother. The stainless steel muffler is durable and corrosion-resistant.

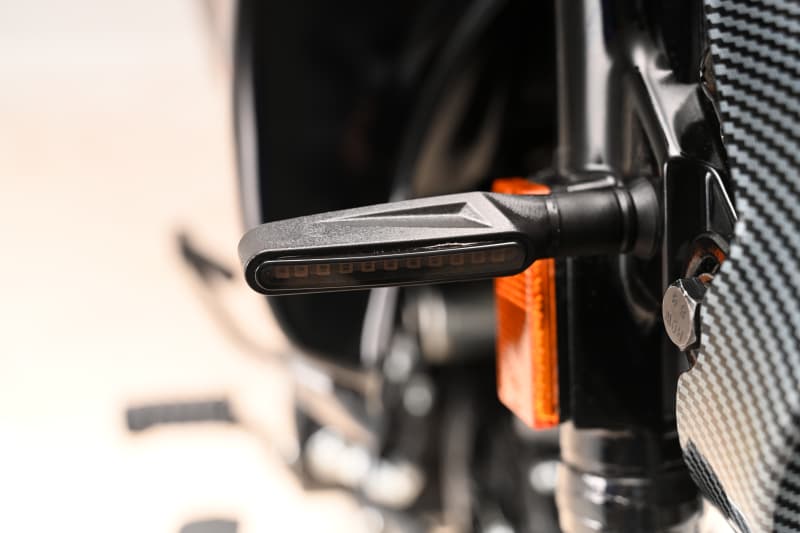

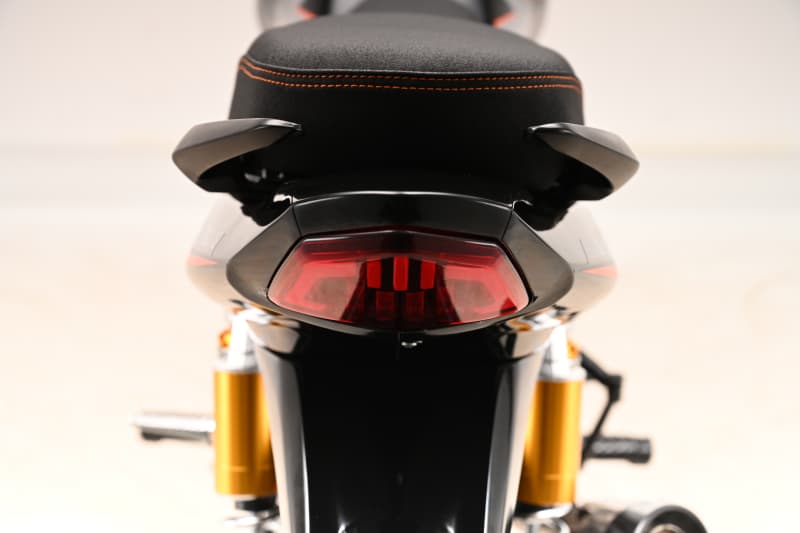

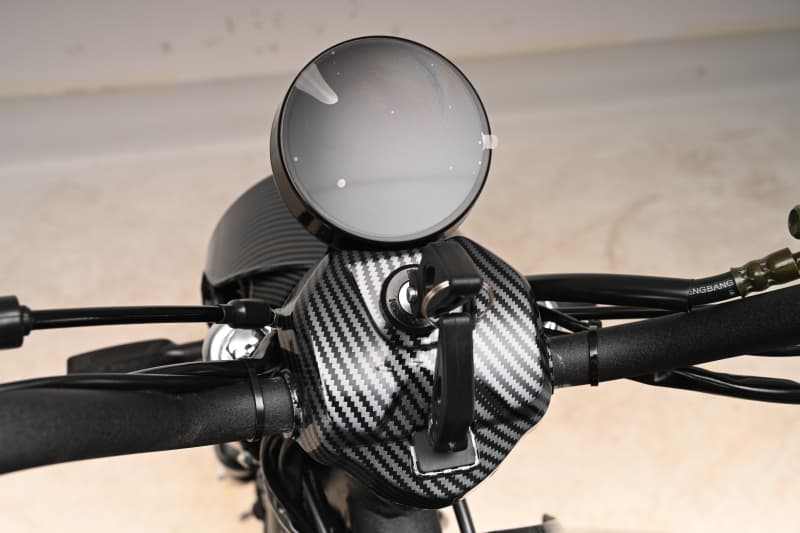

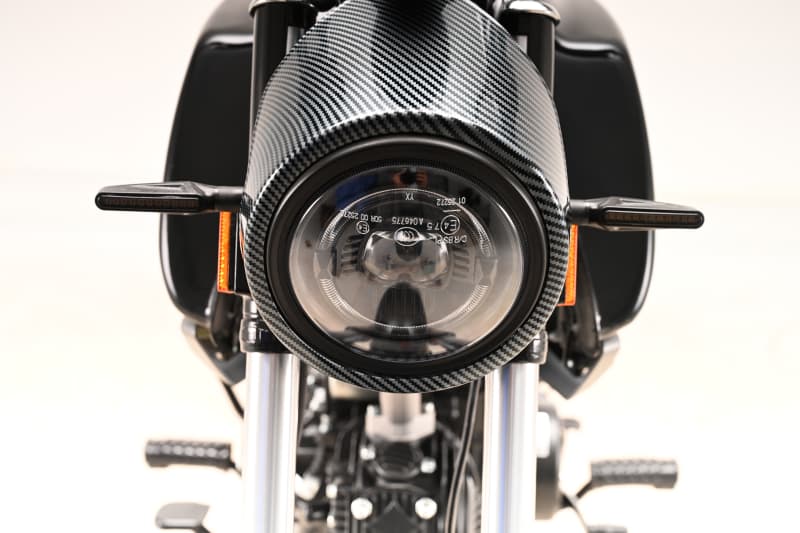

- High-end lighting and display screens: The full LED light group provides brighter, more efficient and longer-lasting lighting, and the clear single circular LCD instrument panel ensures easy monitoring of cycling data.

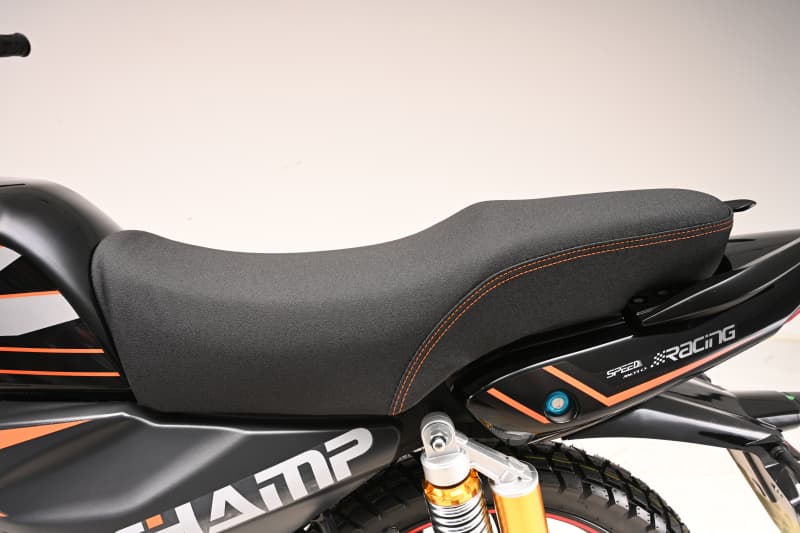

- Ergonomic riding design: The seat height is 790 millimeters, suitable for cyclists with a height of 1.6 to 1.9 meters. This cycler-centered design takes into account both racing and riding experiences, enhancing handling.

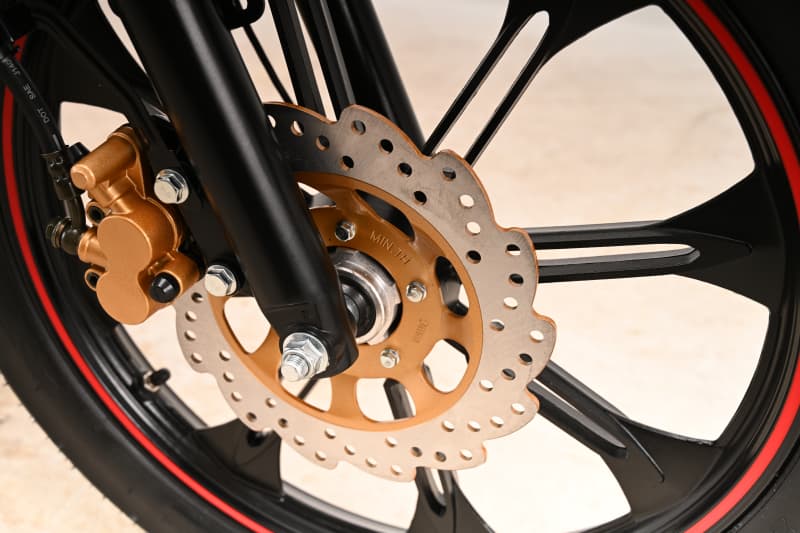

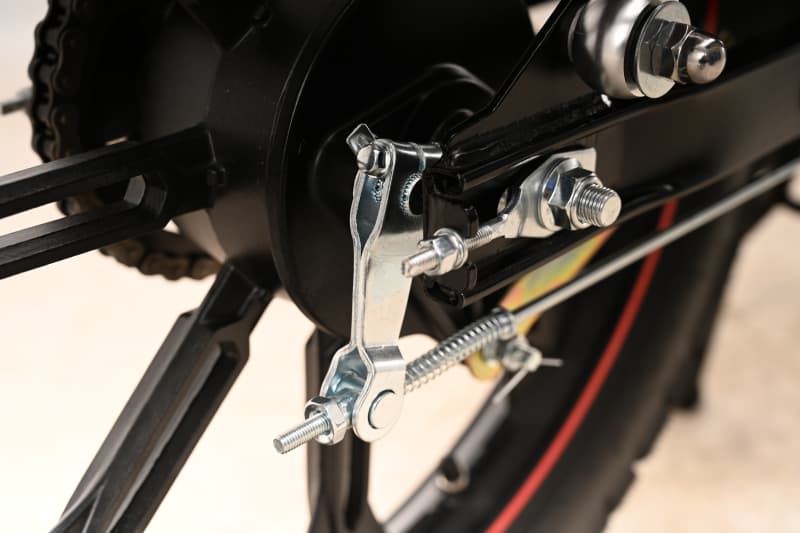

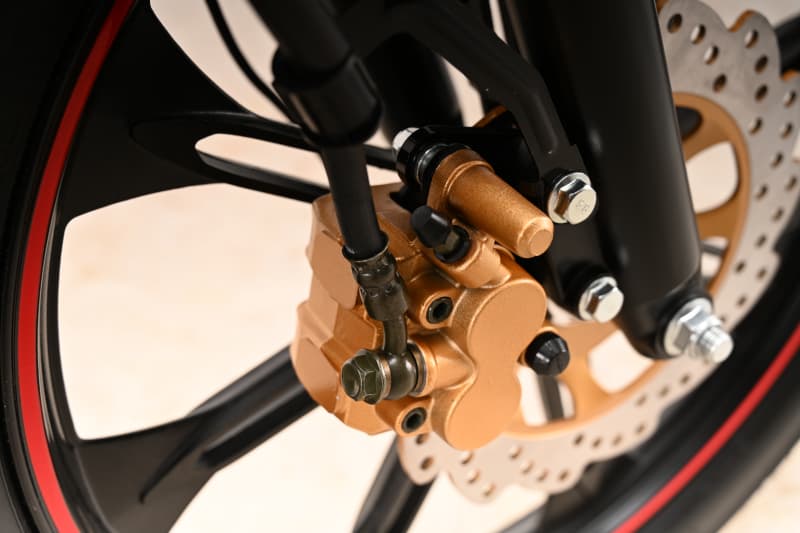

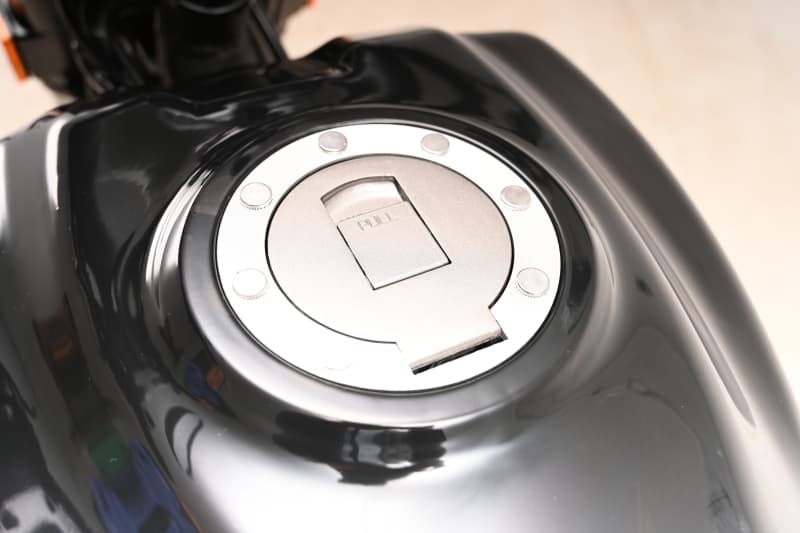

- Battery life and safety: The large-capacity fuel tank ensures reliability during long-distance driving, and the front disc and rear drum braking system guarantees driving safety.
- All-terrain adaptability: Equipped with road tires at both the front and rear, it can easily handle urban streets and unpaved roads, providing a more free travel experience.
